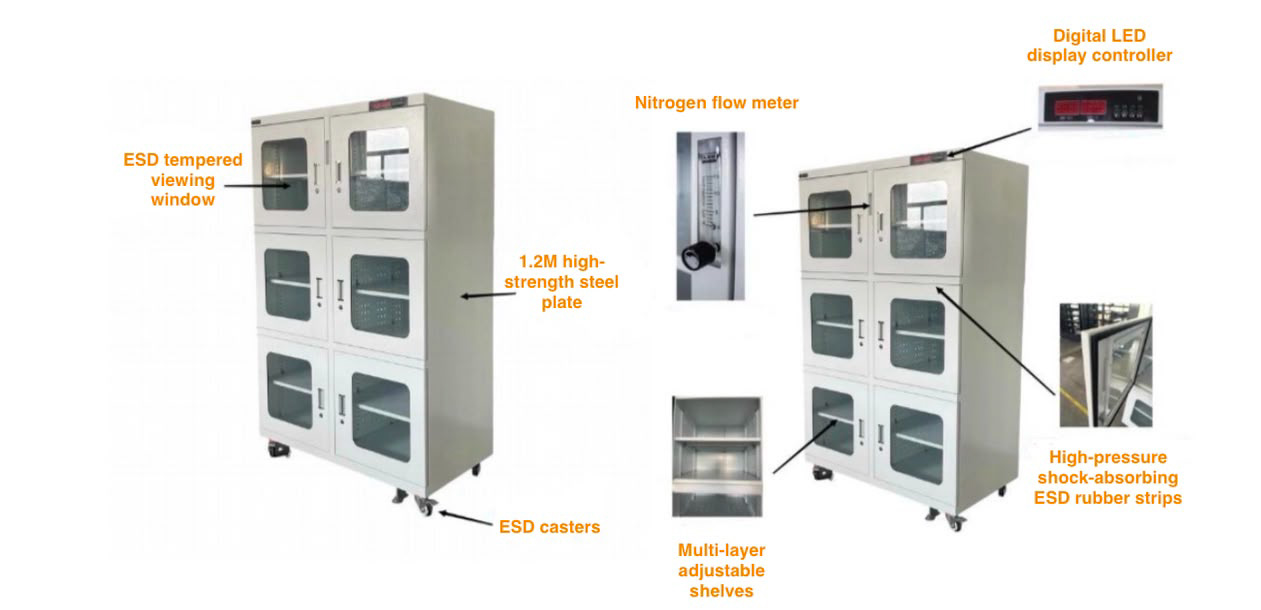

Cabinet body made of 1.2 mm thick steel plate with an anti-static powder-coated finish or stainless steel construction.
High-strength structural design with excellent sealing performance.
Door Design
Fully enclosed design.
Anti-static tempered glass observation windows.
Equipped with conductive casters for easy movement.
Power Supply
AC 220V, 50Hz–60Hz.
Humidity Control
Ultra-low humidity range: 1%–60% RH adjustable.
Humidity display range: 1%–99.9% RH.
Temperature Display
Temperature display range: 0°C to 99.99°C.
Sensors
Humidity accuracy: ±3% RH
Temperature accuracy: ±1°C
Intelligent Nitrogen Filling System
When humidity exceeds the preset value, the nitrogen replenishment system automatically purge nitrogen.
Accelerates moisture reduction and prevents oxidation of sensitive components.
Controller
Microcomputer-controlled system with touch-button operation.
Display
Digital LED display for temperature and humidity.
Real-time monitoring and working status indication.
Parameter memory function after power interruption.
Environmental Design
Low power consumption.
No condensation, dripping, frost formation, or overheating.
ESD Protection
Anti-static design with surface resistance of 10⁵–10⁹ Ω.
Grounding wire and conductive casters directly connected to earth ground to eliminate static electricity.
Smart CPU
Built-in intelligent CPU control system for easier operation and improved energy efficiency.
Optional Functions
Nitrogen Purge System
Can be customized according to customer requirements.
Continuous Nitrogen Purge During Power Failure
The cabinet is designed to maintain nitrogen purging even during power interruptions, ensuring uninterrupted protection of moisture-sensitive and oxidation-sensitive components.
Control Modes
Humidity control mode
Nitrogen concentration control mode
Timer control mode
Monitoring System
Optional temperature and humidity monitoring software with PC connectivity.
Features:
Real-time data acquisition and storage.
Sampling interval configurable (typically every 5–10 seconds).
Historical temperature and humidity records can be viewed, stored, and analyzed.
Alarm System
Alarm activated when temperature or humidity exceeds the preset limits.
Alarm Methods
Audible alarm
Flashing warning light alarm
Other Custom Functions
Custom-designed according to customer requirements.
